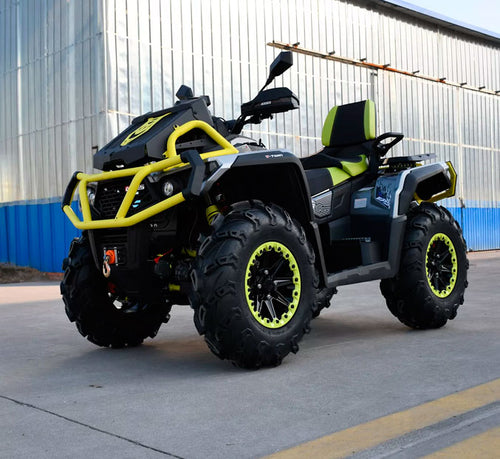

pathcross 1000 MUD PRO – UTV Specifications

🔧 Engine & Drive

• Engine Type: V-Twin

• Fuel System: Electronic Fuel Injection (EFI)

• Transmission: Shaft Drive

• Drive Mode: 2WD / 4WD

• Power Steering: Electric Power Steering System (EPS)

🛠️ Suspension & Handling

• Front Suspension: Independent Dual A-Arm

• Rear Suspension: Torsional Trailing Arm Independent (TTI)

• Shocks: Adjustable Coilover Gas Shocks

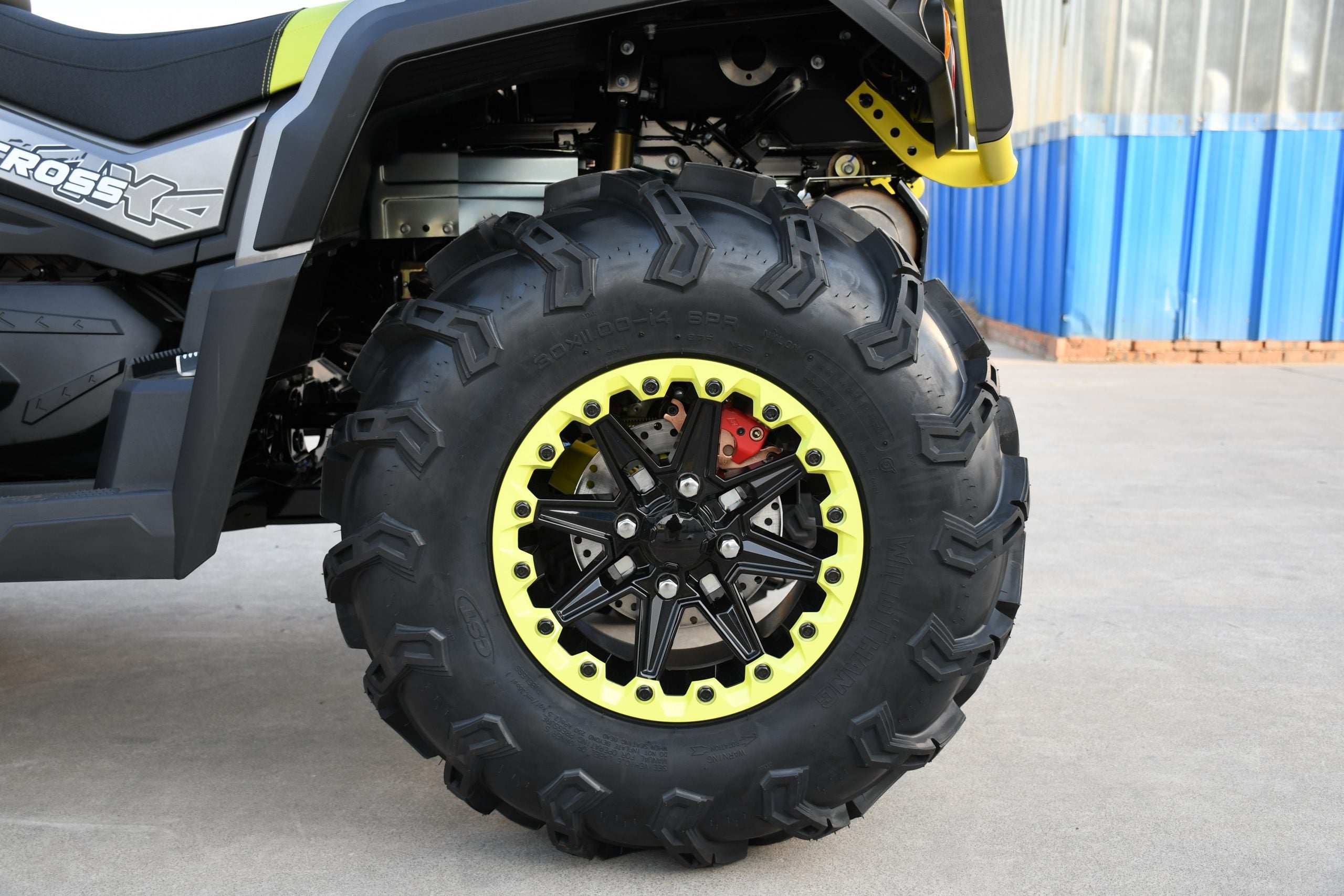

🛞 Wheels & Tires

• Front Tires: 30×9-R14 CST Mud Tires

• Rear Tires: 30×11-R14 CST Mud Tires

• Wheels: 14" Alloy Rims (4 total)

🛑 Brakes

• Front Brakes: Disc

• Rear Brakes: Disc

📏 Dimensions & Capacity

• Curb Weight: 455 kg

• Gross Vehicle Weight: 573 kg

• L x W x H: 2298 mm × 1246 mm × 1335 mm

• Wheelbase: 1348 mm

• Ground Clearance: 330 mm

• Fuel Tank Capacity: 22 Liters

💡 Features

• Winch: 3500 lbs front winch

• Dash Display: Digital dash screen

• Lighting: LED headlights + LED tail lights + DRLs

• Brakes: Handle parking brake

• Protection: Full mudguards, handguards, grab handle

• Tow Hook: Trailer hitch included

• Racks: Front & Rear plastic utility racks

• Handlebar: Taper-profile aluminum with guards
