| Model |

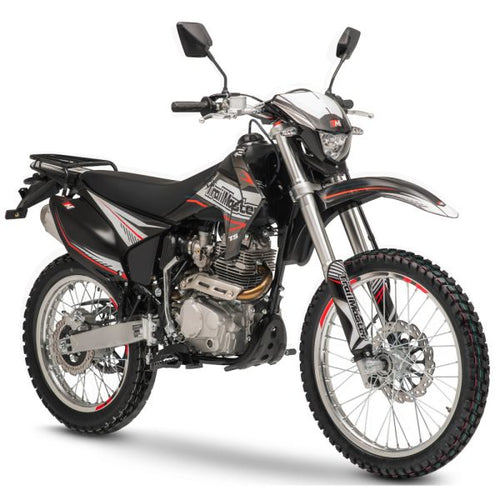

TrailMaster T5 |
| Engine |
Single Cylinder, 4-stroke, Air-cooled |
| Displacement |
223cc |
| Max Power |
6.2 / 7000(1+-1.5%) kw/rpm |
| Max Torque |
17.5 / 5500(1+-1.5%) N.m/rpm |
| Max Speed |
57 MPH (approx.) |
| Transmission |
Manual 5-Speed |
| Gearing |
N-1-2-3-4-5 |
| Final Drive |
Chain |
| Starting system |
Electric w/ Kick |
| Ignition |
CDI |
| Fuel capacity |
2 gal. |
| Brakes (Front/Rear) |
Hydraulic Disc 252mm / Hydraulic Disc 220mm |
| Tires (Front/Rear) |
80/100-21 / 110/100-18 |
| Suspension (Front/Rear) |
Inverted front shock, 48/51-800mm / Airbag rear shock |
| Ground Clearance |
11.43 inches |
| Max load |
TBD |
| Wheelbase |
55.16 inches |
| Seat Height |
35.07 inches |
| Net Weight |
259.6 lbs. |
| Gross Weight |
308 lbs. |
| Dimensions (LxWxH) |
82.7x31.9x46.5 inches |
| Shipping Dimensions (LxWxH) |
71x18.1x34.8 inches |
